ORFS stands for O-Ring Face Seal, sometimes written as flat face o-ring or SAE J1453. If you work on modern mobile hydraulics — excavators, skid steers, agricultural equipment — you have handled a lot of these, because the industry moved toward them for one reason: they are very hard to make leak.
How the seal works

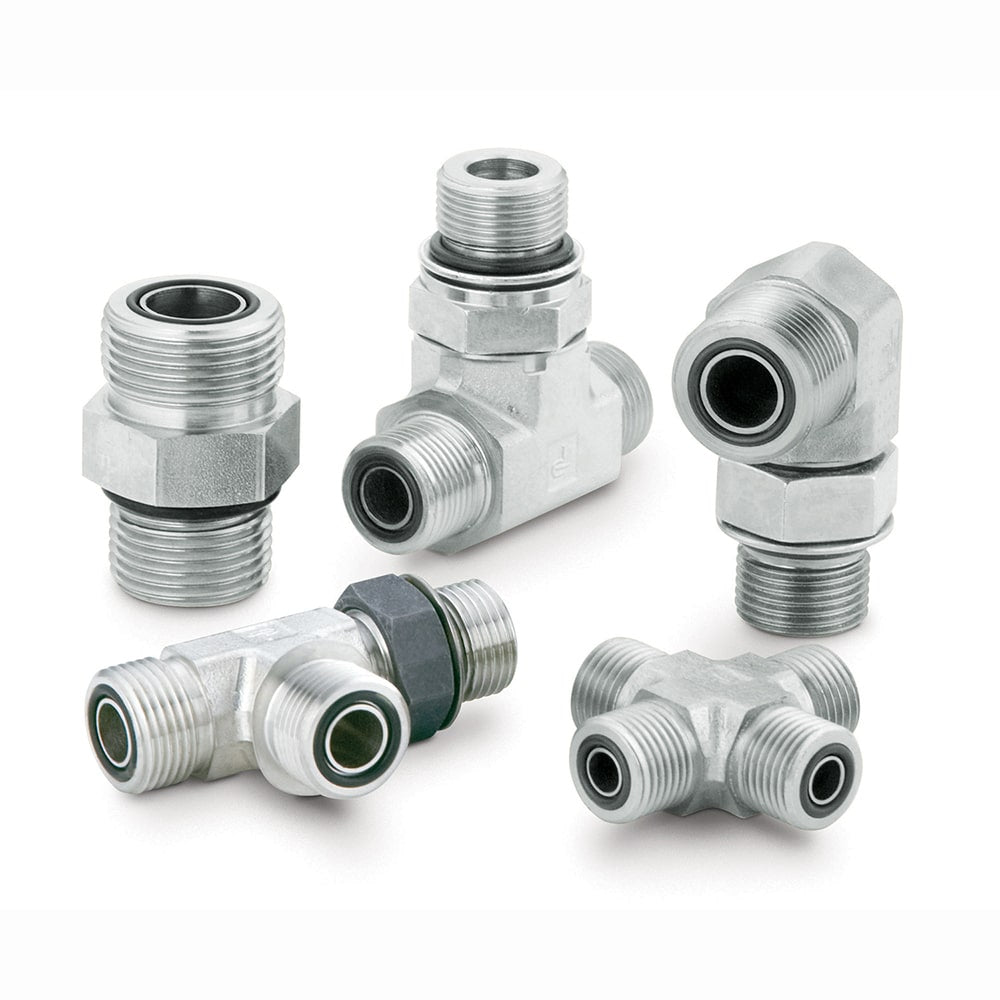

The tube end is machined flat, with an o-ring sitting in a groove on that flat face. A swivel nut pulls the flat face against the mating flat face of the fitting. The o-ring is compressed between two parallel flat surfaces.
Because both sealing surfaces are flat and the o-ring is captured in a groove, the joint tolerates vibration and pressure cycling far better than a thread-sealed connection. That is why ORFS dominates high-pressure applications.
Telling ORFS apart from ORB
The quickest visual check: look at the end of the male fitting.
- ORFS — flat face with a groove and an o-ring sitting in the face, straight threads.
- ORB — o-ring sits at the base of the thread against a shoulder. See our ORB guide.
- JIC 37° — no o-ring at all, a machined cone. If there is no groove and no o-ring, it is metal-to-metal and a replacement ring will not help you.
Why ORFS joints leak
Given the design, a leaking ORFS joint almost always means one of four things:
- The o-ring was nicked on assembly — very easy to do dragging it past a thread.
- The o-ring has taken a compression set after long service and no longer springs back.
- The wrong size was fitted — slightly undersized rings will seal briefly, then extrude.
- The flat face is scored. Inspect it. No o-ring will seal against a damaged face.
ORFS o-ring sizes
ORFS uses standard AS568 dash sizes, which is a genuine convenience compared with the 900-series numbering that ORB requires. Dash 4 takes an #011, dash 6 an #012, dash 8 an #014, and so on.
Keep the common sizes on hand
