There is a point where threaded hydraulic connections stop making sense. Above roughly one inch of bore, the torque needed to seal a threaded joint becomes impractical and the fitting gets enormous. The industry's answer is the split flange.
How a flange connection seals

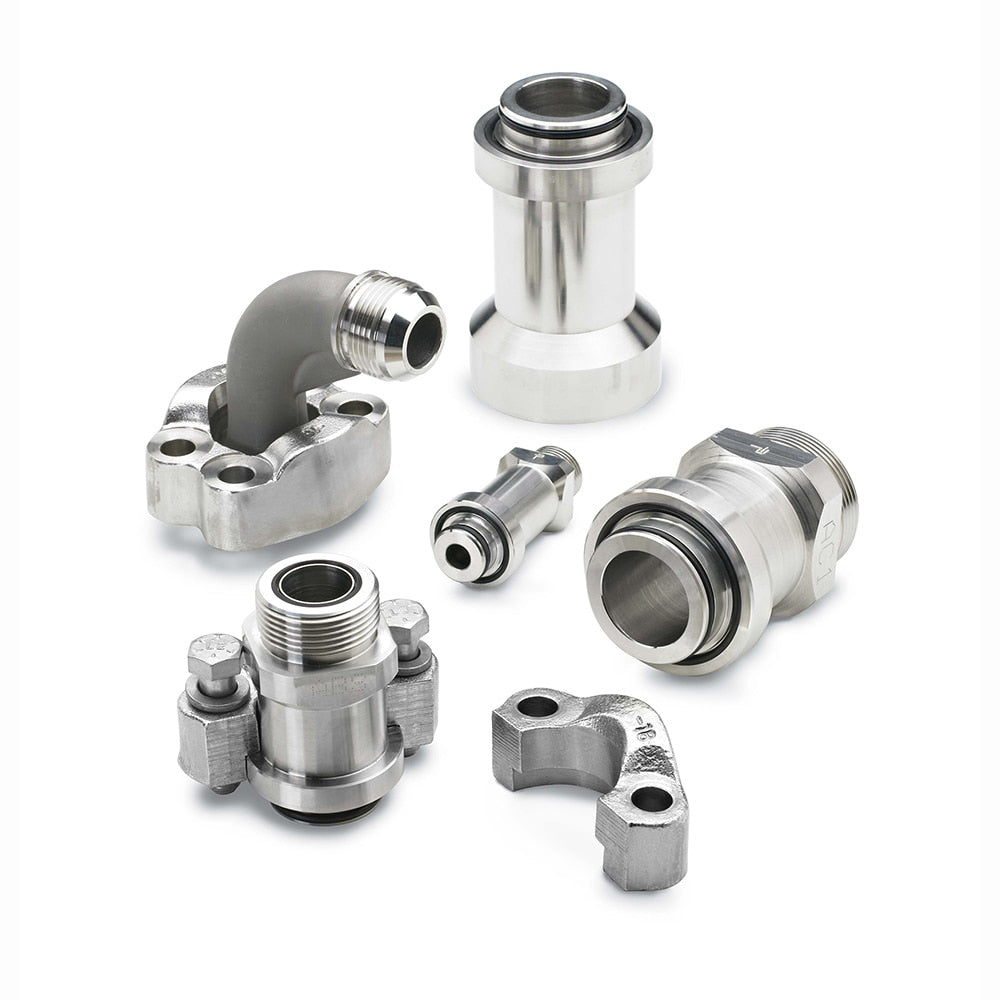

The tube or hose terminates in a flange head with a groove machined into its face. An o-ring sits in that groove. Two split clamp halves bolt the flange head against a flat port face, compressing the o-ring.
As with ORB and ORFS, the o-ring does all the sealing. The bolts only supply clamping force. This is why flange joints tolerate very large bores and very high flow — you can always add clamping force with more or larger bolts, without needing to twist anything.
Code 61 versus Code 62
Two SAE standards, and they are not interchangeable:
- Code 61 — standard pressure series. The common choice for general hydraulic circuits.
- Code 62 — high pressure series. Thicker flange, larger bolts, tighter bolt pattern for the same nominal bore.
They look similar at a glance and will not mate correctly. Check the bolt spacing and flange thickness before ordering anything. Fitting a Code 61 clamp to a Code 62 head is a failure waiting for pressure.
Correct assembly matters more here
Flange joints are unforgiving of sloppy technique:
- Tighten in a cross pattern, in stages, exactly as you would a cylinder head. Pulling one side down first cocks the flange and pinches the o-ring.
- Seat the o-ring in its groove before offering the flange up. A ring that rolls out during assembly will be crushed at the edge and leak immediately.
- Inspect the port face. Scoring across the sealing area will leak regardless of the o-ring.
The sizes you will actually need
Hydraulic O-Ring Kit for Flange Fittings — 70 pieces across 7 common sizes, Buna-N 90 durometer, compartmented case with sizing chart, covering SAE Code 61 and Code 62.
Contents: 10× each of dash 8 (#210), dash 12 (#214), dash 16 (#219), dash 20 (#222), dash 24 (#225), dash 32 (#228) and dash 40 (#232).
As with all hydraulic service, 90 durometer is the right hardness. Softer material extrudes into the clearance gap under pressure and fails early.
Before you reassemble
Every o-ring in these kits seats better and lasts longer with a food-grade silicone lubricant. Dry o-rings pinch, twist and take a set, which is how a brand-new seal starts weeping within a season. A thin film is all you need.
Aqua Flex Food Grade Silicone Lubricant is what we use and what ships in our kits. Apply it to o-rings only — never to the polished faces of a mechanical shaft seal. Those faces need to run dry and clean against each other, and lubricant on the carbon or ceramic will cause the seal to slip, overheat and leak.
