Replacing a shaft seal without looking at why the old one failed is how people end up doing the same job twice in one season. The failed part carries the diagnosis on its face — usually literally.
What you are looking at

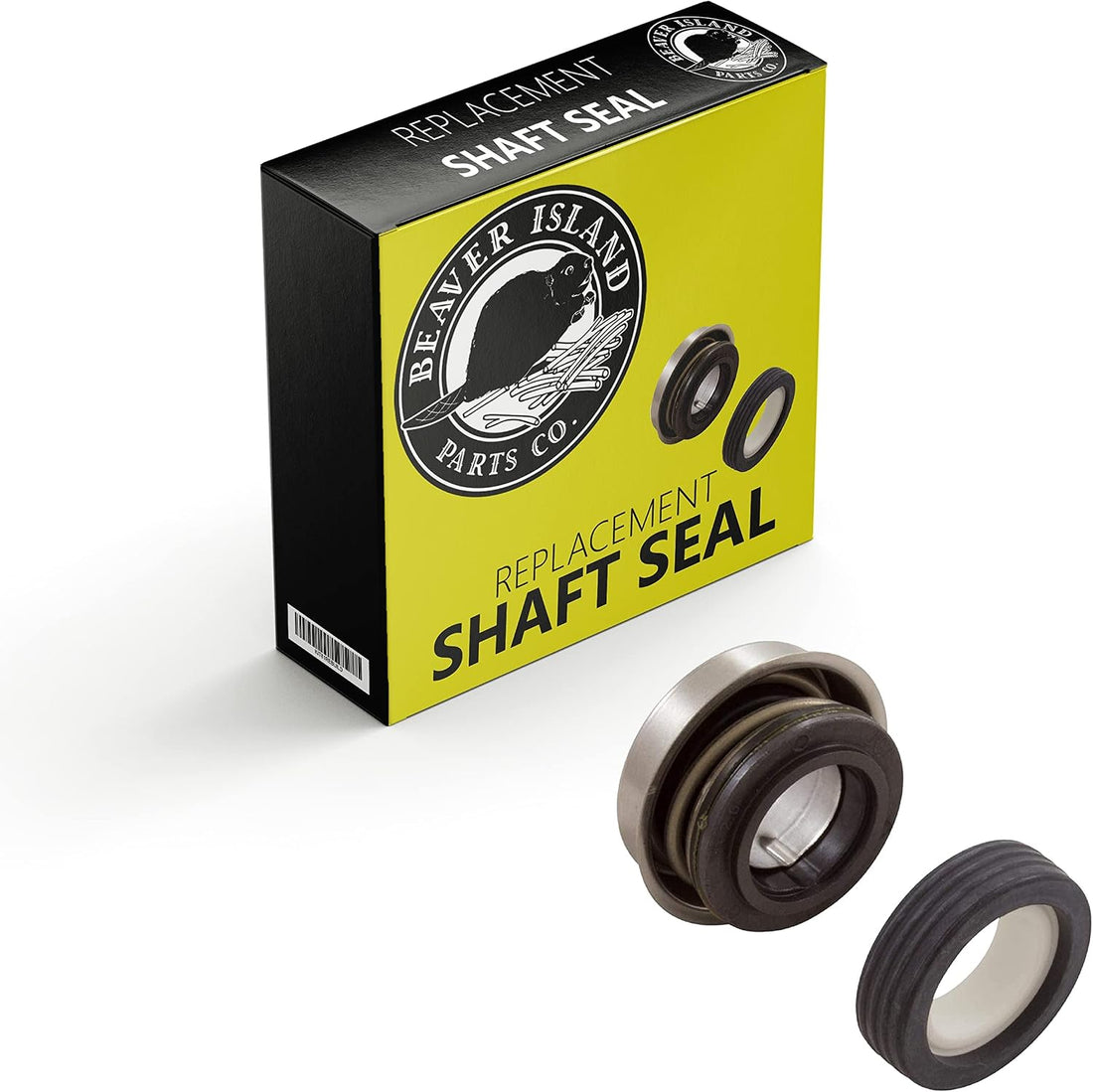

A mechanical shaft seal has five parts: a carbon primary ring (dark grey, matte), an elastomer bellows, a stainless spring, a retainer, and a white ceramic seat in a rubber cup. The carbon and ceramic faces run against each other, separated by a microscopically thin film of the fluid being pumped. That film is the seal.
Reading the failure
Ceramic cracked or chipped
Cause: mechanical shock. Either it was pressed in cocked during installation, or the pump was run with cavitation. Prevention: press the seat squarely with a flat tool across the whole rubber cup, and fix the suction problem before it breaks the next one.
Carbon face glazed, cracked or heat-checked
Cause: dry running. The pump ran without fluid, even briefly. Without the fluid film the faces generate serious heat in seconds. Prevention: prime properly, and fix whatever let the pump lose suction — a low water level, an air leak on the suction side, a blocked strainer.
Carbon face worn but smooth and even
Cause: normal service life. Nothing went wrong; the seal reached the end of its life. Replace it and carry on.
Bellows hard, cracked or swollen
Cause: chemical attack or heat. A hardened bellows can no longer push the faces together. A swollen one means the elastomer is wrong for the fluid — nitrile in contact with something aggressive. Prevention: move to FKM. See the material guide.
Spring rusted or collapsed
Cause: corrosion, usually because the seal was already leaking and the spring sat wet. A weak spring cannot maintain face contact, so the failure accelerates.
Faces fine, but it leaked anyway
Look at the shaft. A groove, pit or corrosion scar where the bellows grips will let water past regardless of how good the seal is. No seal fixes a bad shaft.
The one that catches everyone
Lubricant on the seal faces. It is a natural instinct — you lubricate every other rubber part in the pump. But silicone on the carbon or ceramic prevents the faces bedding in, and the seal leaks from the moment it is started. Lubricate the bellows and the seat cup. Leave the faces clean and dry.
Get the whole wet end while you are in there
Reaching the shaft seal means splitting the pump. Every other o-ring in that pump has aged under identical conditions. Our rebuild kits bundle the seal with every gasket and o-ring for the specific pump.
Before you reassemble
Seat every o-ring with a thin film of food-grade silicone lubricant. Dry rings pinch and take a set, which is how a new seal weeps within a season. Aqua Flex Food Grade Silicone Lubricant is what ships in our kits.
O-rings only. Never lubricate the polished carbon or ceramic faces of a mechanical shaft seal — they must run dry against each other or the seal slips and leaks from new.
