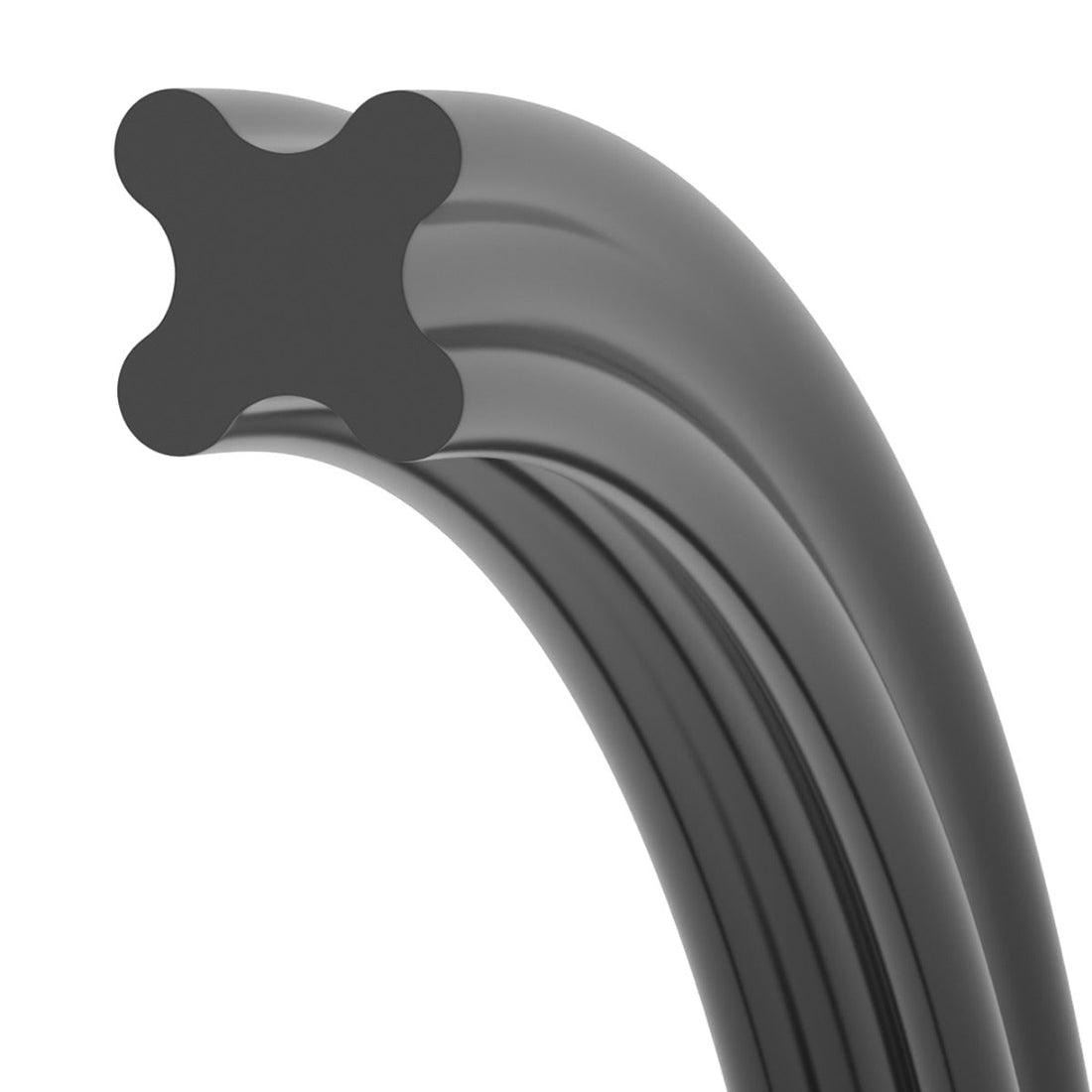

Open a pump rebuild kit and you may find a ring that is not round in cross-section but has four lobes, like a squared-off clover. That is a quad-ring, also called an X-ring, and it is there for reasons.
What the four lobes do
Two sealing points instead of one
A round o-ring contacts each surface along a single line. A quad-ring contacts along two, with a small reservoir of lubricant trapped between them. Two chances to seal instead of one.
It resists rolling
This is the big one. In dynamic service — anywhere a shaft or rod moves — a round o-ring can roll in its groove rather than slide. Rolling twists it, and repeated twisting produces spiral failure. The four-lobed profile resists that.
Less squeeze for the same seal
Quad-rings seal effectively with lower compression, which means less friction and less heat in dynamic applications — and a longer life at the same duty.
Where you will meet one
Pentair specifies a quad-ring on several pumps — 355030, the diffuser seal on the Challenger, SuperFlo, SuperMax, VS and Pinnacle, is a quad-ring. It appears in our rebuild kits for those pumps because substituting a round o-ring there does not work reliably.
See the Challenger guide.
Can you substitute?
Quad-ring where an o-ring is specified: usually harmless, sometimes an upgrade, but check the groove — quad-rings need slightly different geometry to work properly.
O-ring where a quad-ring is specified: avoid it. The equipment maker chose a quad-ring for a reason, usually rolling resistance, and an o-ring in that position tends to fail early and confusingly.
Handling
Quad-rings are more easily damaged on installation than o-rings, because the lobes can be folded over without it being obvious. Seat them carefully, lubricate on assembly, and inspect before closing everything up.
Before you reassemble
Seat every o-ring with a thin film of food-grade silicone. Dry rings pinch and take a set. Aqua Flex Food Grade Silicone Lubricant is what ships in our kits.
